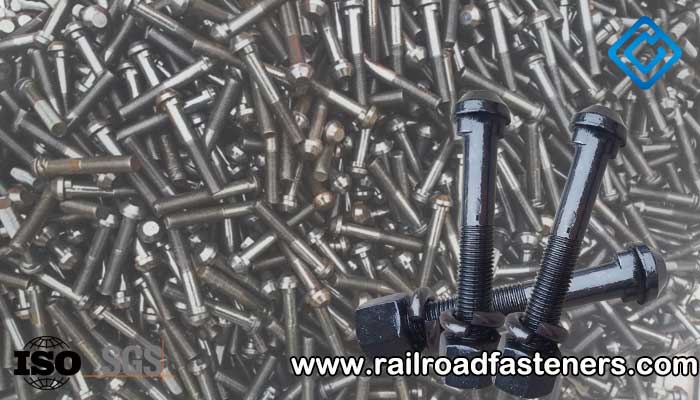

A few days ago, a batch of M22x135 BHON fish bolt was successfully delivered. This is the second order from a contractor customer in Kazakhstan. Before this BHON fish bolt order, they have bought 3000 sets of subway fastening system from AGICO Railway. We made a very reliable impression on each other, laying the foundation for the second purchase of M22x135 fish bolts. This batch of BHON fish bolt size is adopted as M22x135 according to customer requirements and the surface is coated.
Specification of BHON Fish Bolt
BHON fish bolt is a kind of track bolt that used on fishplate. Depending on the size of the BHON fish bolt, it can be used with different types of fishplates. We can produce the following size of BHON fish bolt: 22×135, 24×135, 24×145, etc and the surface treatment methods include plain (oiled), oxide black, zinc, HDG. The bolts can be customized according to the customer's requirements. We have made the BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard fishtail plate bolts respectively. The technology is mature and the construction period is short.
|Material||Q235, 35#, 45#,, 40Cr , C45|
|Grade||4.8, 8.8, 10.9|
|Size||22×135, 24×135, 24×145, etc.|
|Surface||Plain (oiled), Oxide black, Zinc, HDG|
BS standard, R54 rail in Indonesia, AS1085.4-1999,
Russian standard, AREMA standard, etc.
Types of Track Bolts for Sale
In addition to the BHON M22x135 fish bolt ordered by the customer this time, our company also produces many different types of track bolts, such as clip bolt, T bolt, anchor bolt, heavy hex head frog bolts, cup head oval neck fish bolt, etc. If you are interested in our bolts, welcome to send enquiries to consult us.
|Name of Project||43kg rail with UIC60 rail joint bar to build a 100km rail of mining|
|Place of Project||Indonesia|
|Name of Purchaser||Local rail contractor in Indonesia|
|Starting Date of Delivery||2018.7|
|Ending Date of Delivery||2018.9|
|Project Description||2000tons UIC60 rail with about 1000ton fasteners to build a 100km rail of mining|
